Model TG513X Download Datasheet


BRUSHLESS PERMANENT MAGNET MACHINE

PERFORMANCE TG513X
Max continuous torque (Nm) 1.68
Max permissible speed (RPM) 18400
Max continuous shaft power (kW) 1.40
Max efficiency (%) 90%
Max stator temperature (C) 120
Peak torque – 1s (3s) (Nm) 5 (3.09)
MODEL SPECIFICATIONS TG5130 TG5131 TG5132 TG5133 SYM
Winding configuration Series Y Series ∆ Parallel Y Parallel ∆
Max continuous current Arms 18.0 27 35.9 53.9 I
Voltage constant Vpkl-l/(rad/s) 0.084 0.049 0.042 0.024 Ke
Voltage constant Vpkl-l/kRPM 8.8 5.1 4.4 2.5 Ke
Torque constant Nm/Arms 0.103 0.069 0.051 0.034 Kt
Motor Constant Nm/√W 0.130 0.130 0.130 0.130 Km
Terminal resistance Ω 0.417 0.139 0.104 0.035 R
Terminal inductance μH 19.0 6.3 4.8 1.6 L
Motor drive voltage Vbus (RPM*Kv*π/30+Torque/Kt*R)*1.2
Generator terminal voltage Vrms (RPM*Kv*π/30-Torque/Kt*R)/Sqrt(2)

NOTES

  • All ThinGap machines can operate as a motor or generator and can be purchased with or without frame
  • When operated as a motor best performance is obtained with high frequency sinusoidal drives
  • 70μH per phase of external inductance is recommended when operated with conventional <40kHz drives
  • Contact ThinGap for drive compatibility and applications engineering
MODEL NUMBER TG51   X   X   – X010
Machine series TG51
Rotor configuration X
Winding configuration X
Mounting option (M-Framed, P-Frameless Part Set) – X010
EXAMPLE TG5132 – P010

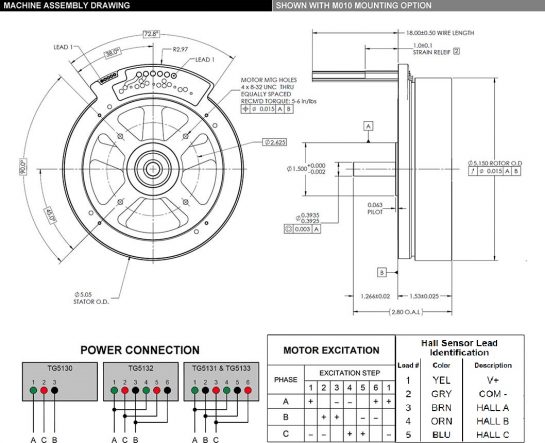

MECHANICAL SPECIFICATIONS TG513X
Max outer diameter in (mm) 5.15 (131)
Through hole diameter in (mm) 4.566 (116)
Total axial height in (mm) 1.184 (30)
Rotor mass lbs (kg) 0.536 (0.243)
Stator mass lbs (kg) 0.29 (0.132)
Partset mass (rotor & stator) lbs (kg) 0.826 (0.375)
Total motor assembly mass lbs (kg) 1.6 (0.726)
Rotor Inertia lbm-ft2 (kg-m2) 2.24E-2 (9.42E-4)
