Model TG714X Download Datasheet

BRUSHLESS PERMANENT MAGNET MACHINE

PERFORMANCE TG714X
Max continuous torque (Nm) 4.26
Max permissible speed (RPM) 10800
Max continuous shaft power (kW) 3.57
Max efficiency (%) 91%
Max stator temperature (C) 120
Peak torque – 1s (3s) (Nm) 17.47 (10.5)
MODEL SPECIFICATIONS TG7140 TG7141 TG7142 TG7143 SYM
Winding configuration Series Y Series ∆ Parallel Y Parallel ∆
Max continuous current Arms 24.2 36.2 48.3 72.5 I
Voltage constant Vpkl-l/(rad/s) 0.160 0.092 0.080 0.046 Ke
Voltage constant Vpkl-l/kRPM 16.8 9.7 8.4 4.8 Ke
Torque constant Nm/Arms 0.196 0.131 0.098 0.065 Kt
Motor Constant Nm/√W 0.330 0.330 0.330 0.330 Km
Terminal resistance Ω 0.236 0.079 0.059 0.020 R
Terminal inductance μH 20.5 6.8 5.1 1.7 L
Motor drive voltage Vbus (RPM*Kv*π/30+Torque/Kt*R)*1.2
Generator terminal voltage Vrms (RPM*Kv*π/30-Torque/Kt*R)/Sqrt(2)

NOTES

  • All ThinGap machines can operate as a motor or generator and can be purchased with or without frame
  • When operated as a motor best performance is obtained with high frequency sinusoidal drives
  • 70μH per phase of external inductance is recommended when operated with conventional <40kHz drives
  • Contact ThinGap for drive compatibility and applications engineering
MODEL NUMBER TG71   X   X   – X010
Machine series TG71
Rotor configuration X
Winding configuration X
Mounting option (M-Framed, P-Frameless Part Set) – X010
EXAMPLE TG7142 – P010

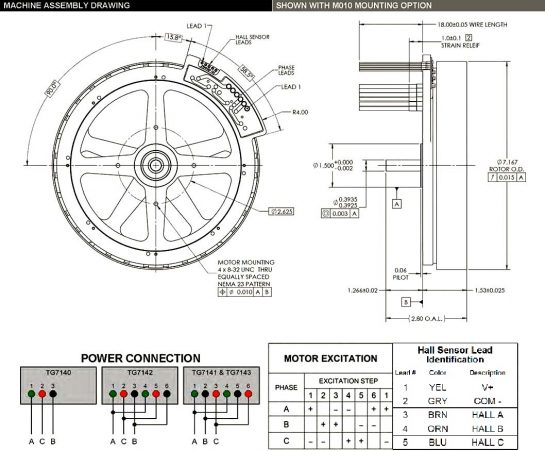

MECHANICAL SPECIFICATIONS TG714X
Max outer diameter in (mm) 7.169 (182)
Through hole diameter in (mm) 6.341 (161)
Total axial height in (mm) 1.539 (39)
Rotor mass lbs (kg) 1.159 (0.526)
Stator mass lbs (kg) 0.504 (0.228)
Partset mass (rotor & stator) lbs (kg) 1.663 (0.754)
Total motor assembly mass lbs (kg) 2.8 (1.27)
Rotor Inertia lbm-ft2 (kg-m2) 9.41E-2 (3.97E-3)
